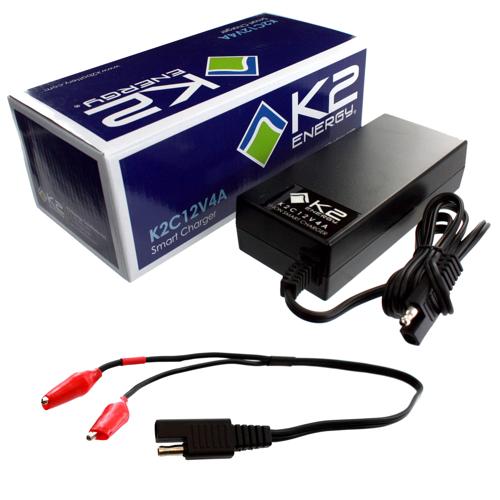

Smart Charger for 12V LiFePO4 Battery Packs, 4A
Documentation and Support
Warning
- Only charge LiFePO4 battery pack with capacity > 2000 mAh. Don't use the charger for lower capacity LiFePO4 battery pack.
- Only charge LiFePO4 battery pack with voltage 12V (4 cell pack). Don't use the charger for Lower voltage battery pack which may cause battery to explode
- We are not responsible for any damage caused by misuse.
- Must read before place an order.
- We reserve the right to not sell the battery to any one if we feel they cannot handle battery safely
- For safety warning please see the link here
- This Smart Charger is designed for rapidly charging capacity > 4Ah 12V(4 Cells) LiFePO4 batteries.
- It features a three stages charging method ( Constant Current, Constant Voltage , Trickle charge mode) without overcharging the battery.
- Alligator Clips are installed in output terminal with ~3' 8" of cable (red clip is positive)
- "Internal Resettable fuse" is installed inside a charger. No need to change the fuse after over-load current cut-off
- INPUT
- AC input voltage 90 to 240 VAC Worldwide power support
- Input frequency 50/60Hz
- Input Current Max 1A
- CHARGE
- The Battery range is between 3AH to 25AH
- Max. charging current: 4A
-
No Reverse Polarity Protection
- Must connect to battery with correct polarity. We won't be responsible for any damage caused by miss-use
- OUTPUTS
- 12V 4A
- LED indicator
- Red LED = Charging (0-99%)
- Green LED = Fully charged (100%)
- Box dimensions: 8.5" x 4" x 3"
- Charger dimensions: 2 3/8" x 5 1/2" x 1 3/8"
- Weight: 320grams ( 11.2 Oz)
| Active State | ||||
|---|---|---|---|---|
| Active State | Model | Output current | Output voltage | Bi-color LED |
| 1.Fast Charge | CC mode | 3.0A | 14.5V | Red |
| 2.Continue Charge | CC&CV mode | 3.0A or below | 13.8V+/-0.20V | Red |
| 3.Stand-by charge | CV mode | <0.6A about | 13.8V max | Green |
Smart Charger for 12V LiFePO4 Battery Packs, 4A
- Product Code: TE-281-012
- Availability: Out of stock
$71.90
