UM4 "Retriever"

Rapid Deployment UM4 4WD Patrol Robot

The UM-4 Retriever includes a pan-tilt-zoom camera, a control unit, and a charging system. Weighing around 47 lbs., the robot is portable and easy to deploy. These robots are quick, agile, and durable allowing for efficient and effective patrols. Optional accessories include an audio system, front LED lights, and a transportation case. These features give operators even better feedback on the robot's surroundings.

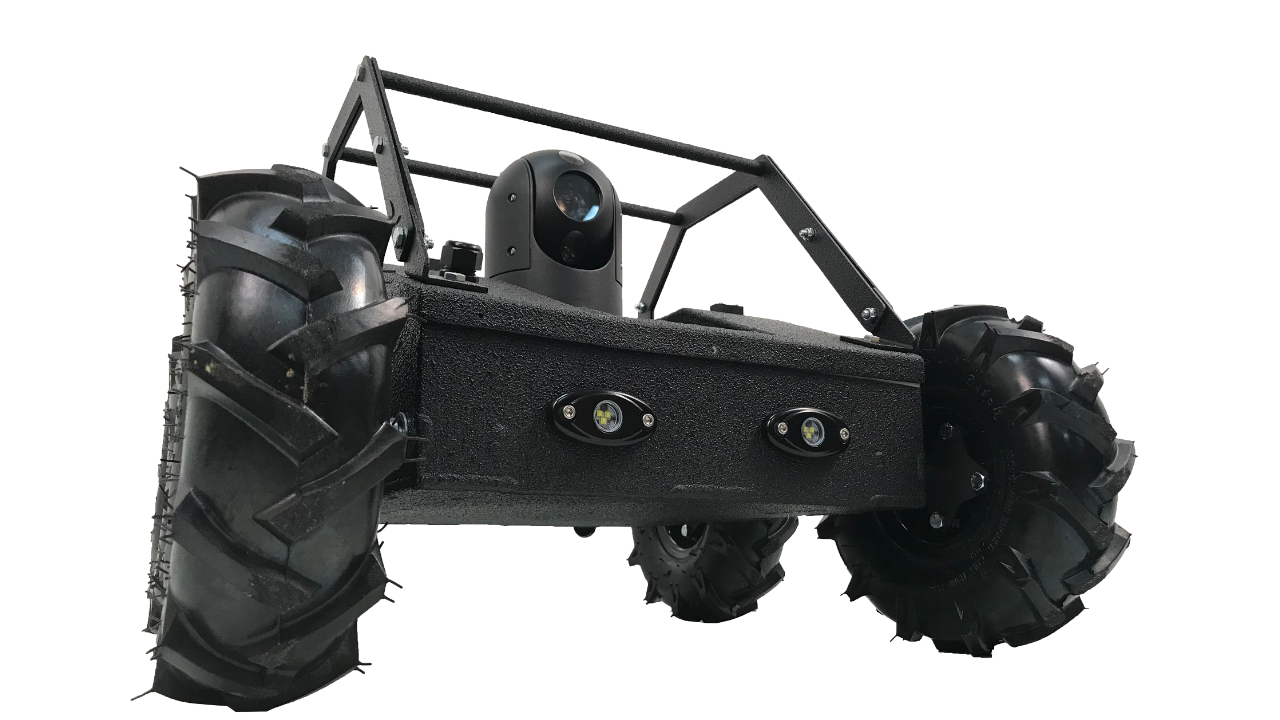

Image of Retriever Tactical Robot

Applications

Quiet and Quick

The UM4 Retriever is built for speed while creating as little noise as possible.

Low-light Observation

The pan and tilt camera with IR allows the robot to see in all lighting conditions, making the Retriever ideal for patrolling in dark or poorly lit areas.

Remote Surveillance

The tilting 30X optical zoom camera with lights allows the viewer to see everything even in the total darkness.

Hostage and Hazardous Patrol

Survey hostile/hazardous situations staying out of harm's way.

Clearing rooms remotely

Clear rooms and buildings remotely with audio and video surveillance.

Wireframe of Retriever Tactical Robot

Robot Specifications

Operation Time

Up to 6 Hours

Speed

0 to 5 feet per second.

Weight

Avg 47 Pounds (Depending on Configuration)

Dimensions

Height: ~17.5 Inches (Including Roll Cage)

Width: 22 Inches

Length: 25 inches

Size chart of Retriever Tactical Robot

Operator Control Unit (OCU) Specifications:

  • Control your tactical robot with an Operator Control Unit (OCU). Our digital radio systems provide encrypted long-range control of your robot. We offer a variety of remotes, so you can choose the system that meets your needs!
  • Our Wi-Fi system is an affordable remote control option. A powerful router in the robot provides an extended operational range. A touch screen tablet with virtual joysticks allows for easy control of the robot!
  • Standard Enclosed Remote: This remote is contained in a pelican style case. It features built in industrial joysticks. It is easy to hold and has a 12" tablet display.
  • Repeaters and Secondary Monitoring Stations are available for all our digital control systems.

Documentation and Support

Delivery

  • These robots are built to order. Please allow 3-6 weeks for delivery.
  • Contact us if you need expedited delivery.

Warranty

  • SuperDroid Robots provides a 1-year warranty after shipment. See datasheet for full details.
  • Extended warranties, spare parts, and maintenance training is available, contact us with specific needs. Service agreements are also available.

Pricing

Select the plan the best meets your needs below and we will provide a detailed quotation. All the plans can be customized by selecting different options. The quote form provides you with the ability to comment and add any additional features such as HAZMAT sensors, secondary monitoring stations/repeaters, tethered control, etc.

Basic
$8,500
  • Weatherproof 4WD Chassis
  • Wi-Fi Tablet Control Unit
  • Automatic Battery Charging System
  • 30x Optical Zoom Pan Tilt Camera
  • Video and Image Recording
  • Receive Audio from the Robot
  • Forward Facing LED Lights
  • 2-Way Audio System
  • Foam Lined Transportation Case
Standard
$12,500
  • Weatherproof 4WD Chassis
  • Handheld Digital Radio Control System
  • Automatic Battery Charging System
  • 30x Optical Zoom Pan Tilt Camera
  • Video and Image Recording
  • Receive Audio from the Robot
  • Forward Facing LED Lights
  • 2-Way Audio System
  • Foam Lined Transportation Case
Advanced
$13,500
  • Weatherproof 4WD Chassis
  • Digital Radio Control System in Enclosed Case
  • Automatic Battery Charging System
  • 30x Optical Zoom Pan Tilt Camera
  • Video and Image Recording
  • Receive Audio from the Robot
  • Forward Facing LED Lights
  • 2-Way Audio System
  • Foam Lined Transportation Case
