HD2-S "Mastiff"

HD2-S Heavy Duty Support Tactical Robot with a Multi-Axis Arm

The HD2 features a tracked design that allows it to climb over most obstacles including stairs. It features a 20x zoom camera with 360 degree pan and -15/+90 degree tilt. It also has IR capability so you can see in any lighting condition. With all the features of the HD2-S Doberman, the addition of a multi-axis arm makes this robot even more versatile.

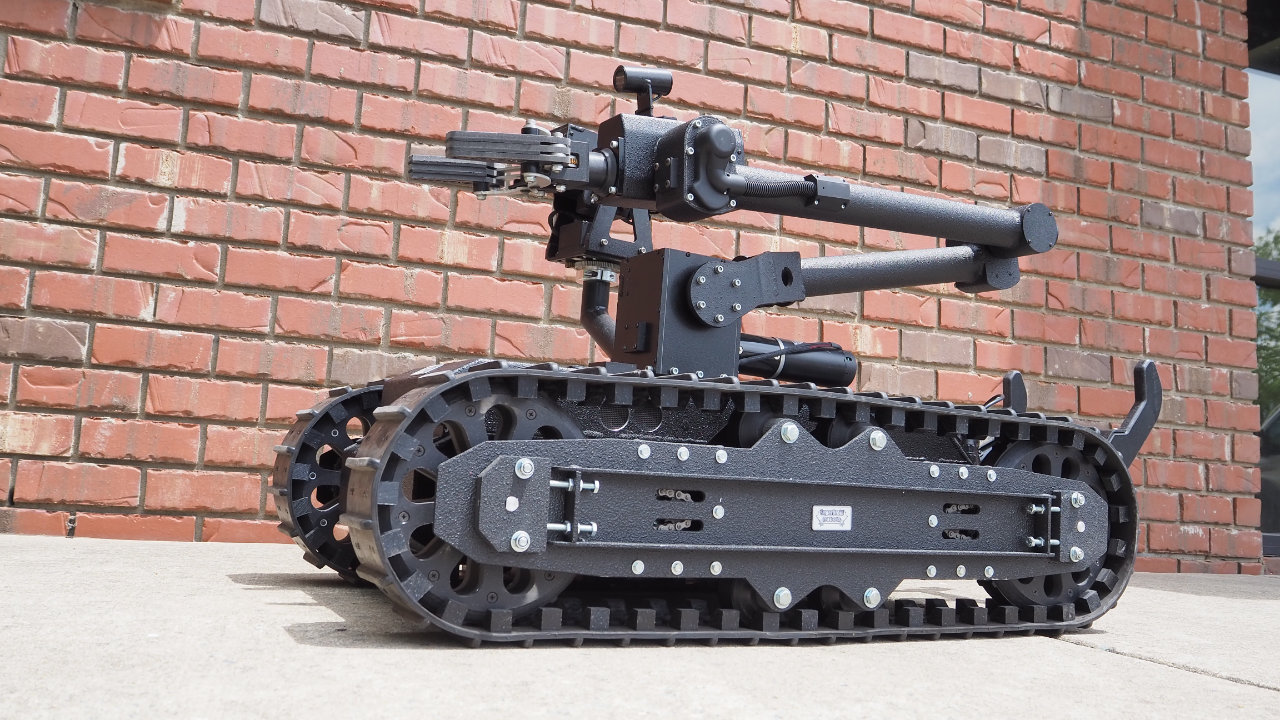

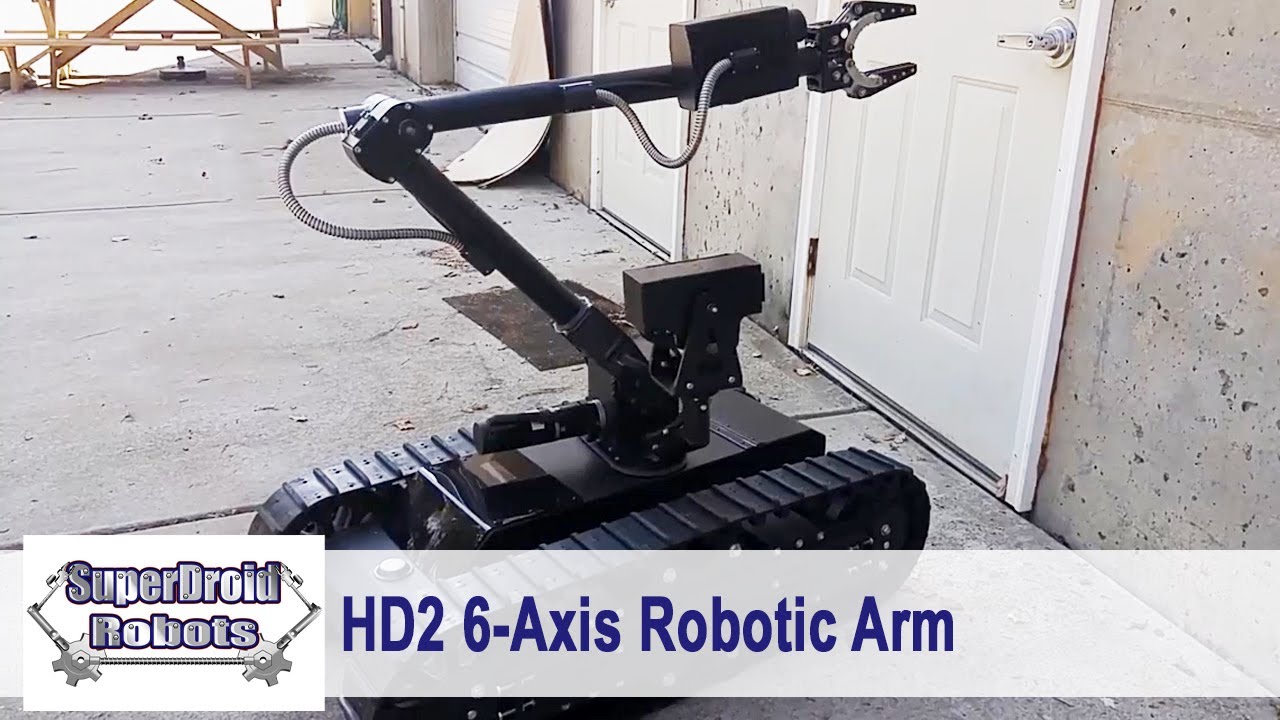

The multi-axis arm allows the operator to open doors, provides assistance in scaling obstacles, moving debris, inspecting suspicious items, and Explosive Ordnance Disposal (EOD) at a safe distance. The strong arm is capable of lifting 20 pounds fully extended. The Mastiff can be equipped with an available 5th axis allowing the base to rotate 400 degrees, and the optional 6th axis allows the wrist to tilt 160 degrees. With this very agile and strong arm, this robot makes a very versatile tool.

Applications

HAZMAT

Survey hostile/hazardous situations staying out of harm's way. Can be equipped with sensors to remotely monitor the environment. Contact us to discuss this option.

Manipulate Objects

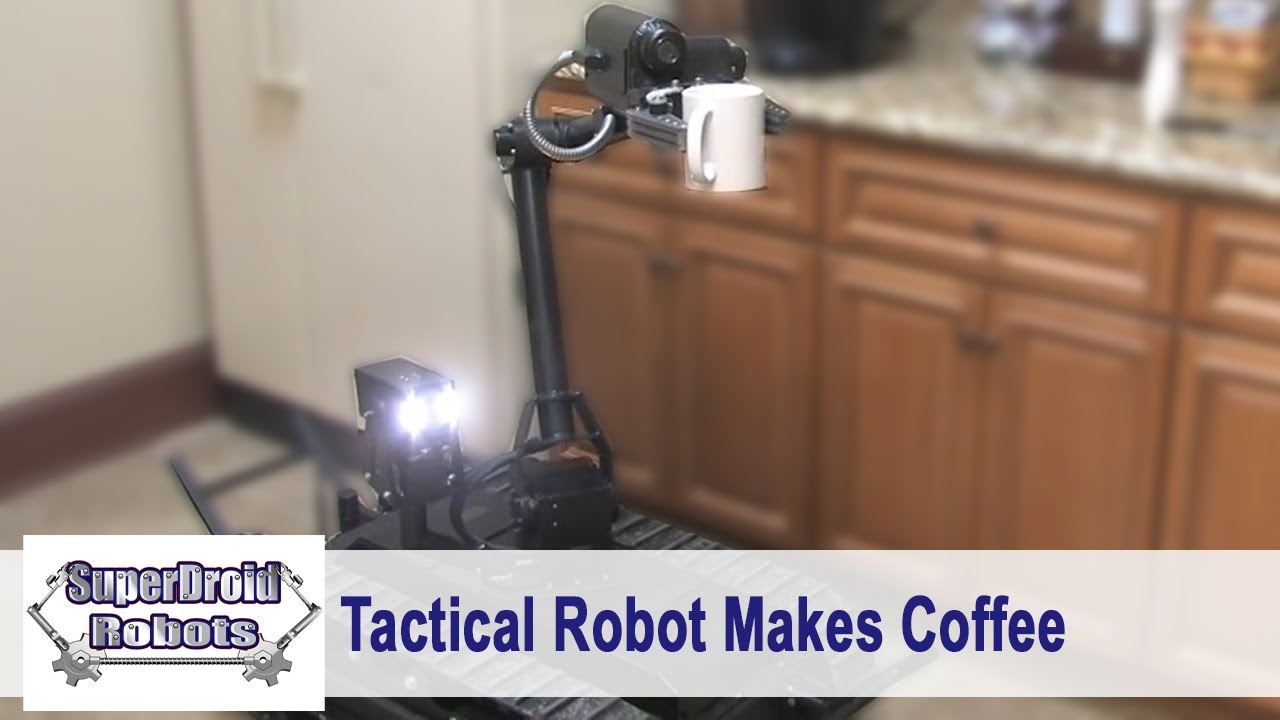

With the Multi-axis arm, things like doors will no longer stop you from surveying potentially dangerous locations. Pick up or move suspicious objects without putting anyone in harms way.

Overcome Stairs and Obstacles

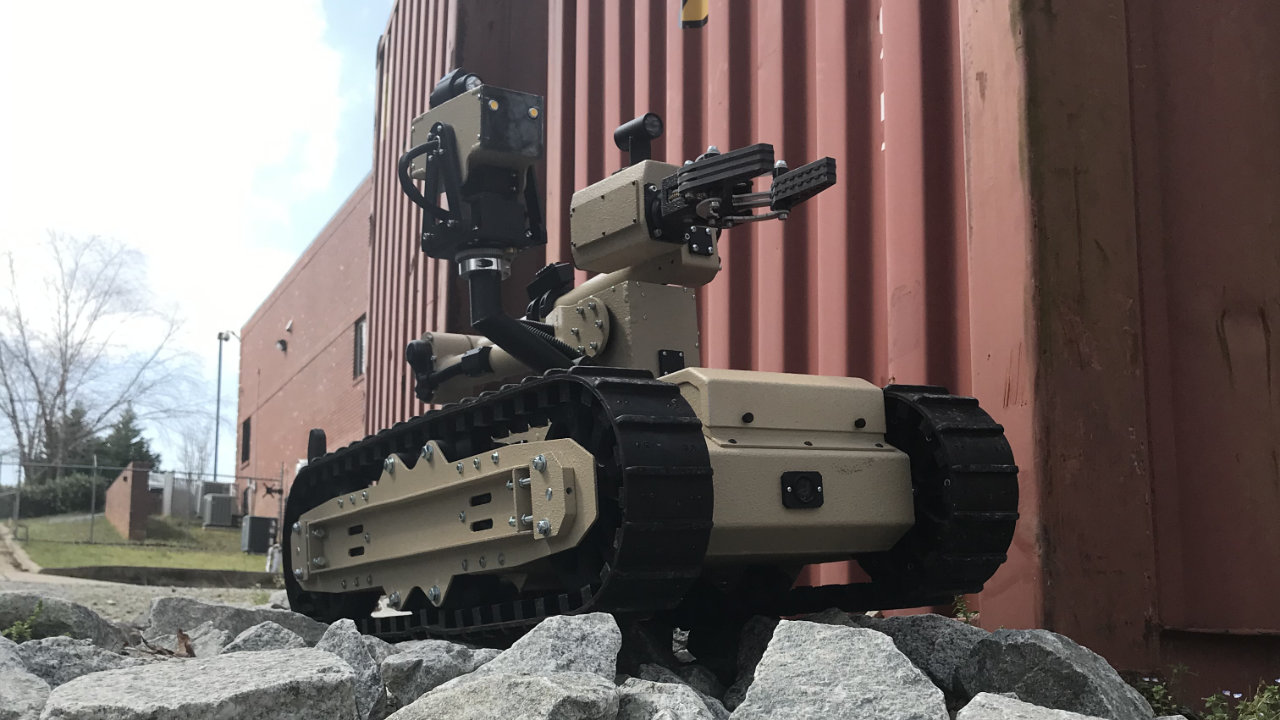

The tracked design allows this robot to climb over most obstacles and go up and down most stairs.

Hostage and hazardous patrol

Survey hostile/hazardous situations staying out of harm's way.

Clearing rooms remotely

Clear rooms and buildings remotely with audio and video surveillance.

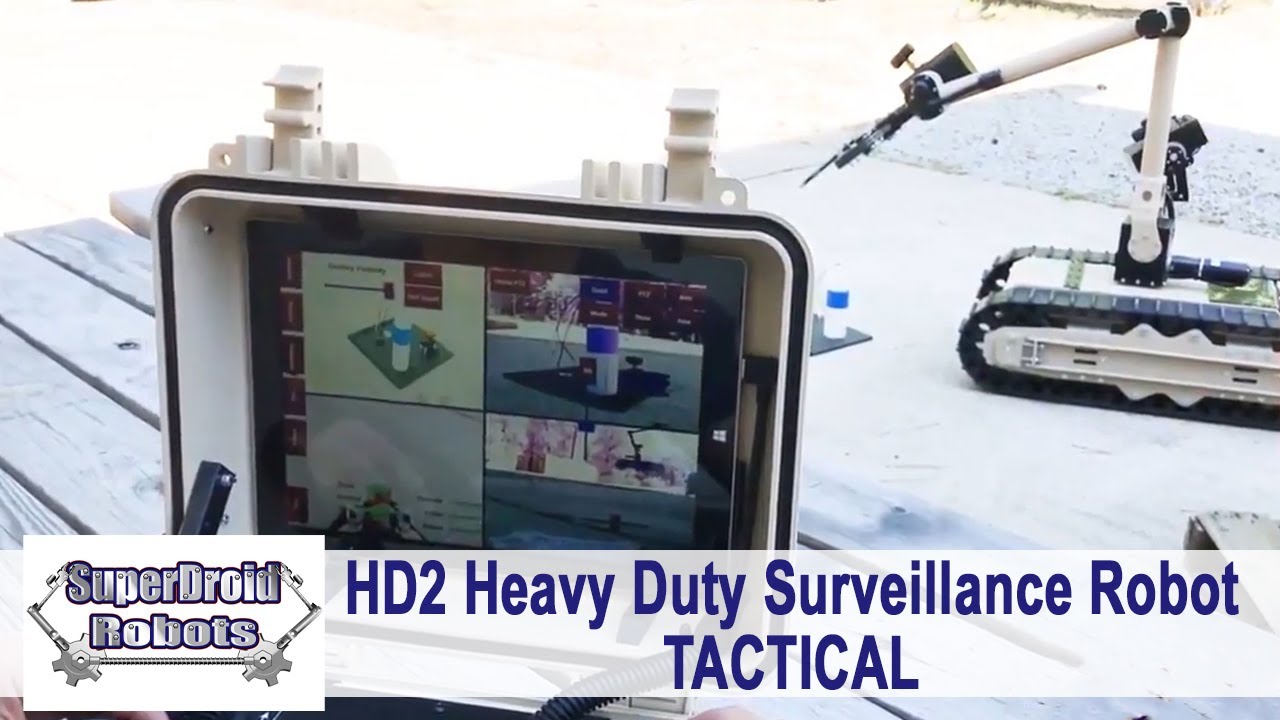

Bomb Disposal

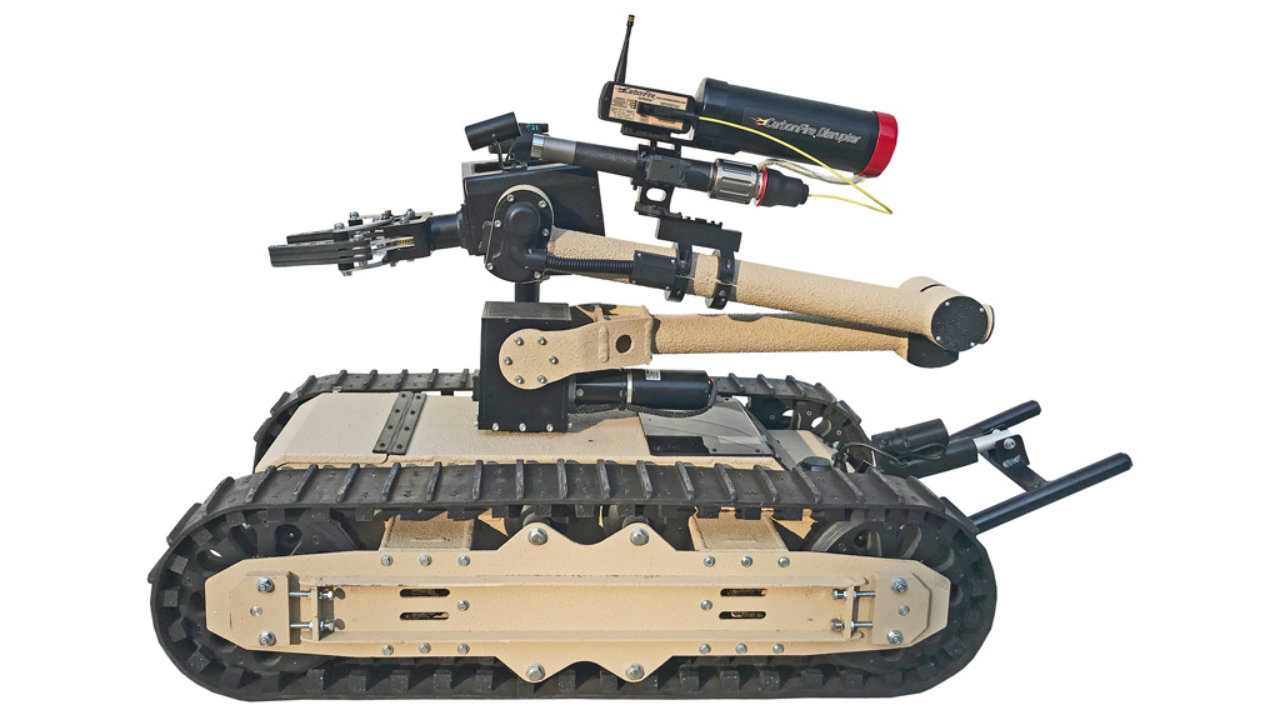

Our UGV (Unmanned Ground Vehicle) is an excellent choice to keep people out of harm's way when it comes to Explosive Ordnance Disposal (EOD), bomb diffusing, and removal of Improvised Explosive Device (IED), pipe bombs, pressure cookers, etc. The HD2 Arm can be equipped with a mount for a Carbon Fire 10 Disrupter. We can supply the disrupter mount with or without the disrupter to EOD Departments.

Robot Specifications

Robot Run Time: Up to 8 hours.
Speed: 0 to 120 ft per min, infinitely adjustable/controllable.
Weight: 110 - 150 lbs depending on configuration.
Dimensions: Total Width: ~20", Total Length: ~38" Height (Parked): ~26".
Special Feature: Multi-Axis Arm:
- 6-Axis Arm.
  - Shoulder rotation: 180 degrees.
  - Elbow rotation: 270 degrees.
  - Wrist rotation: Continuous
  - Parallel Finger Gripper: 4.5” opening with 65lb squeeze force
- Arm payload: 20+ pounds fully extended.
- Optional 5th axis: 400 degree rotating base
- Optional 6th axis: 160 degree wrist tilt
- Upgradeable to include clutches and/or feedback/position control. Contact us to discuss this option.

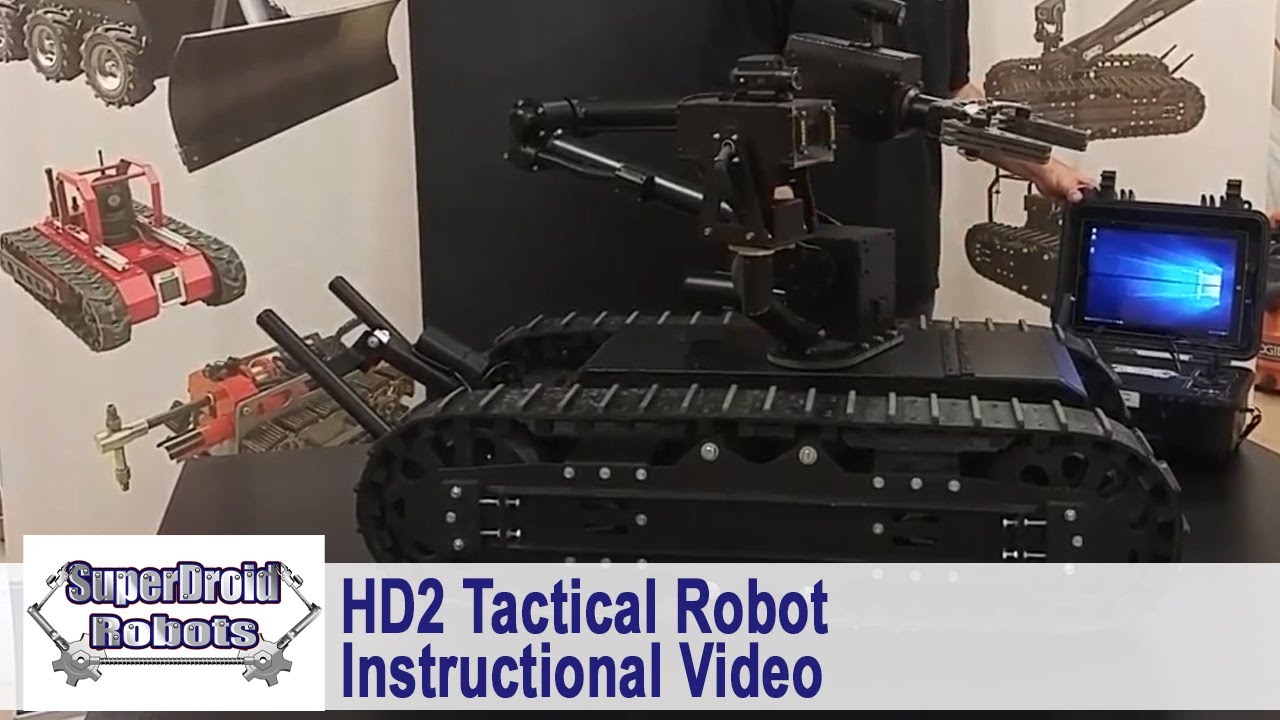

Operator Control Unit (OCU) Specifications:

Control your tactical robot with an Operator Control Unit (OCU). Our digital radio systems provide encrypted long-range control of your robot. We offer a variety of remotes, so you can choose the system that meets your needs!

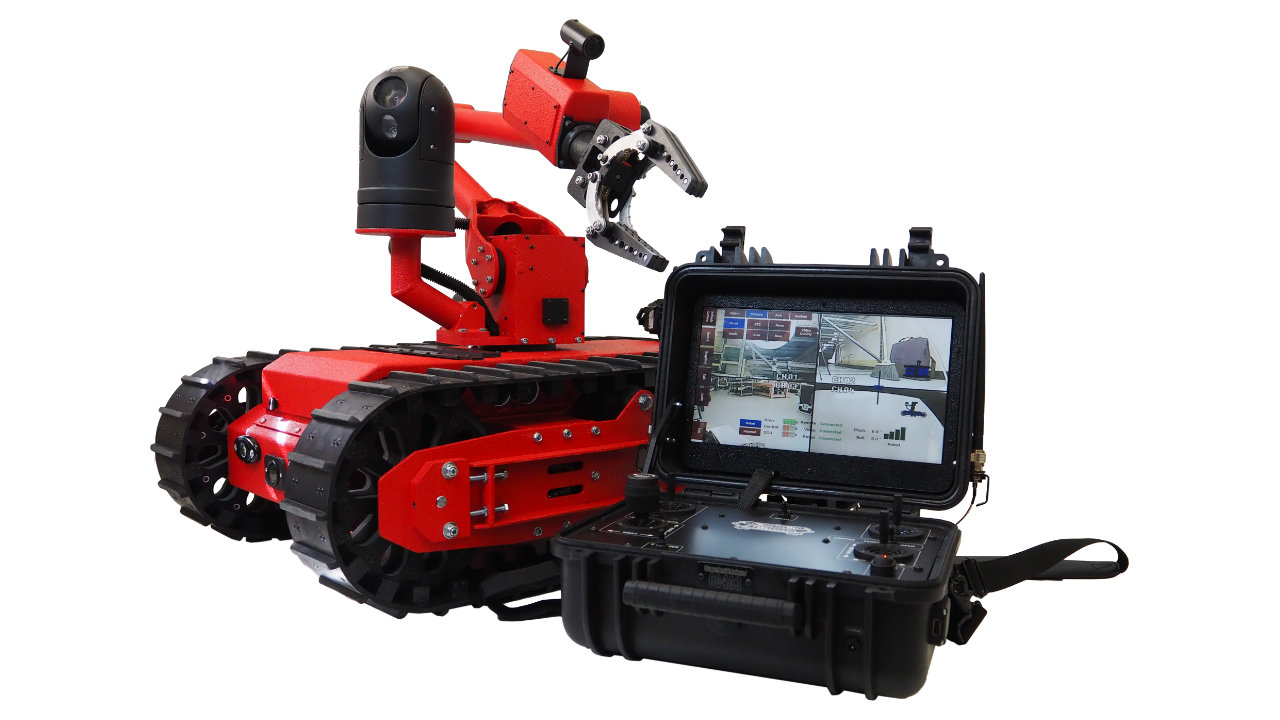

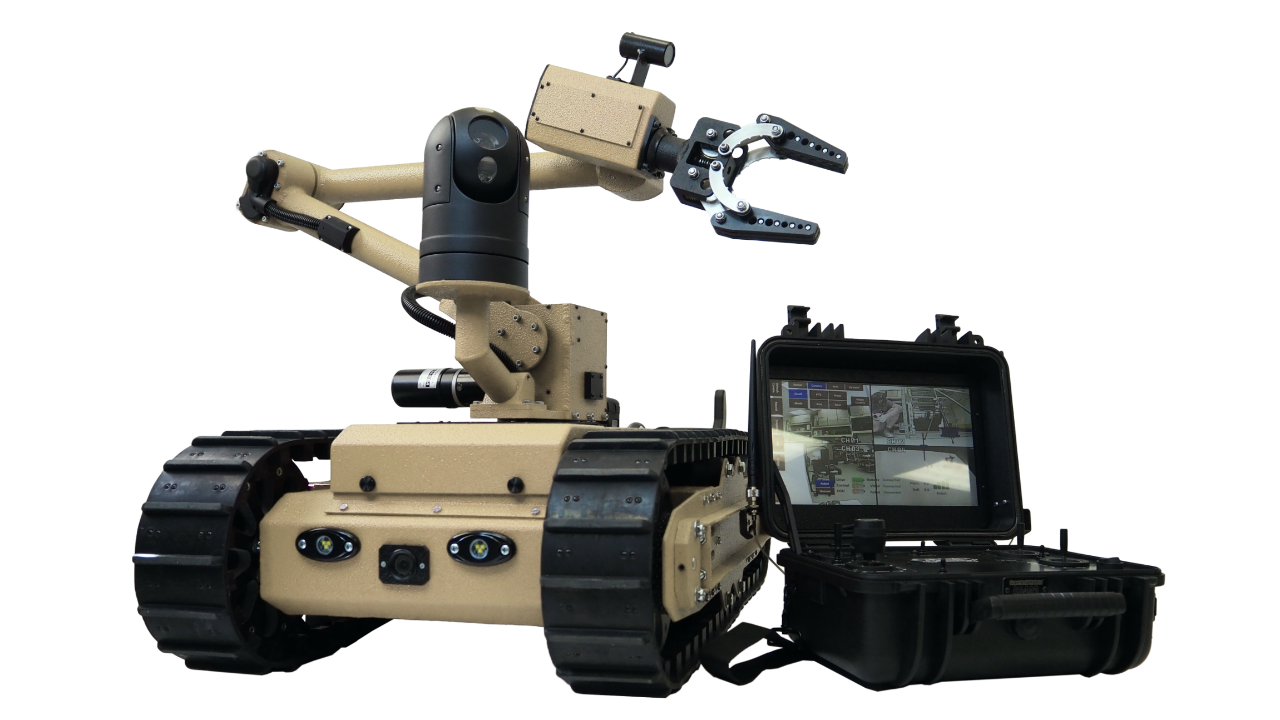

Standard Enclosed Remote: This remote is contained in a pelican style case. It features built in industrial joysticks. It is easy to hold and has a 12" tablet display.
Quad and split screen video processing is available as an option. Also available is an advanced Kinematic model of robot and arm displayed on OCU LCD providing precise position feedback of the arm and collision detection.
Repeaters and Secondary Monitoring Stations are available for all our digital control systems.

Documentation and Support

Delivery

These robots are built to order. Please allow 8-14 weeks for delivery.
Contact us if you need expedited delivery.

Warranty

SuperDroid Robots provides a 1-year warranty after shipment. See datasheet for full details.
Extended warranties, spare parts, and maintenance training is available, contact us with specific needs. Service agreements are also available.

Pricing

Select the plan the best meets your needs below and we will provide a detailed quotation. All the plans can be customized by selecting different options. The quote form provides you with the ability to comment and add any additional features such as HAZMAT sensors, secondary monitoring stations/repeaters, tethered control, etc.
