HD2-S "Doberman"

HD2-S Heavy Duty Support and Tactical Robot

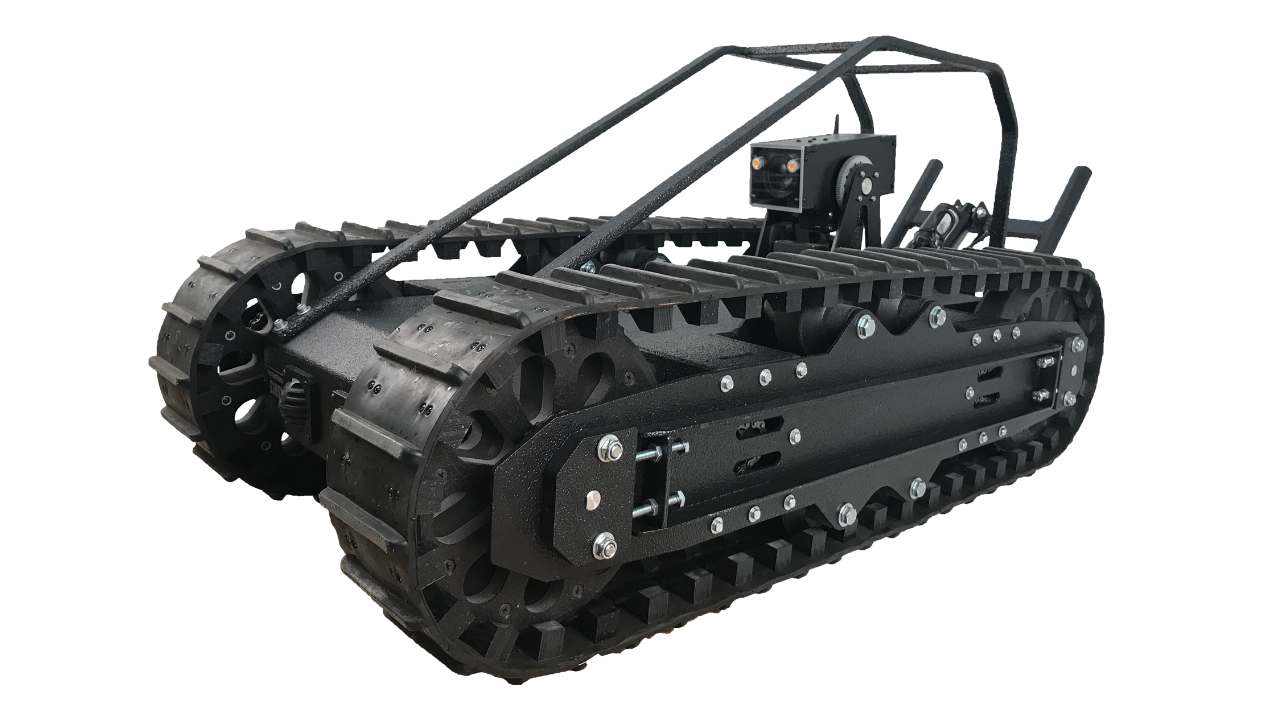

The HD2-S features a tracked design that allows it to climb over most obstacles including stairs. It features an optional 30x 360-degree Pan-Tilt-Zoom camera assembly with high power LED lights allowing you to see in any direction and in almost any lighting situation. The large Heavy Duty Robot will push, pull, or plow over large objects and climb over virtually any obstacle during remote observation. The large aggressive tracks allow you to easily climb stairs and drive over obstacles. Multiple cameras and Operator Control Units (OCUs) are available for control and observation. Available 2-way Audio makes hostage negotiation a breeze. The entire package is developed, designed, built, configured, tested, and supported by SuperDroid Robots in NC USA.

Applications

Low Profile Design

Weatherproof chassis designed to go where other robots can't i.e., under most vehicles, beds, or other hiding areas etc.

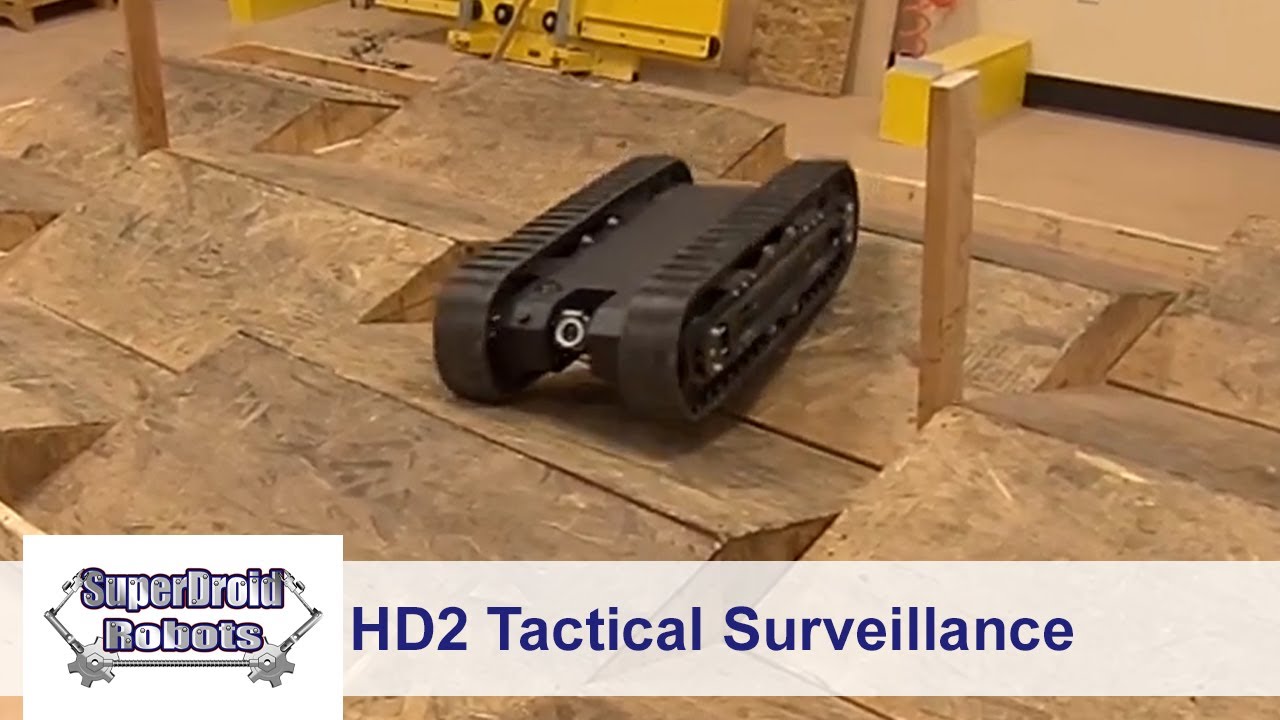

Overcome Stairs and Obstacles

The tracked design allows this robot to climb over most obstacles and go up and down most stairs.

Remote Surveillance

The tilting 30X optical zoom camera with lights allows the viewer to see everything even in the total darkness.

Hostage and hazardous patrol

Survey hostile/hazardous situations staying out of harm's way.

Clearing rooms remotely

Clear rooms and buildings remotely with audio and video surveillance.

Robot Specifications

Operation Time

Up to 8 Hours

Speed

0 to 250 feet per minute.

Weight

Avg 100 Pounds (Depending on Configuration)

Ground Clearance

~2 Inches

Dimensions

Height: 10.5 Inches (19 with roll cage)

Width: 20 Inches (22 with nose camera system)

Length: 38 inches

Operator Control Unit (OCU) Specifications:

Control your tactical robot with an Operator Control Unit (OCU). Our digital radio systems provide encrypted long-range control of your robot. We offer a variety of remotes, so you can choose the system that meets your needs!
Our Wi-Fi system is an affordable remote control option. A powerful router in the robot provides an extended operational range. A touch screen tablet with virtual joysticks allows for easy control of the robot!
Standard Enclosed Remote: This remote is contained in a pelican style case. It features built in industrial joysticks. It is easy to hold and has a 12" tablet display.
Repeaters and Secondary Monitoring Stations are available for all our digital control systems.

Documentation and Support

Delivery

These robots are built to order. Please allow 4-8 weeks for delivery.
Contact us if you need expedited delivery.

Warranty

SuperDroid Robots provides a 1-year warranty after shipment. See datasheet for full details.
Extended warranties, spare parts, and maintenance training is available, contact us with specific needs. Service agreements are also available.

Pricing

Select the plan the best meets your needs below and we will provide a detailed quotation. All the plans can be customized by selecting different options. The quote form provides you with the ability to comment and add any additional features such as HAZMAT sensors, secondary monitoring stations/repeaters, tethered control, etc.
